M1 Variable Speed Drive

Simplify Integration. Save Space. Support Motor Efficiency.

The OMRON M1 Variable Speed Drive delivers built-in EtherCAT + FSoE safety, starts from a compact 68 mm footprint, and provides precision control for multiple motor types.

NZ stock • Direct local support • Next-day dispatch.

View Models and Buy Now

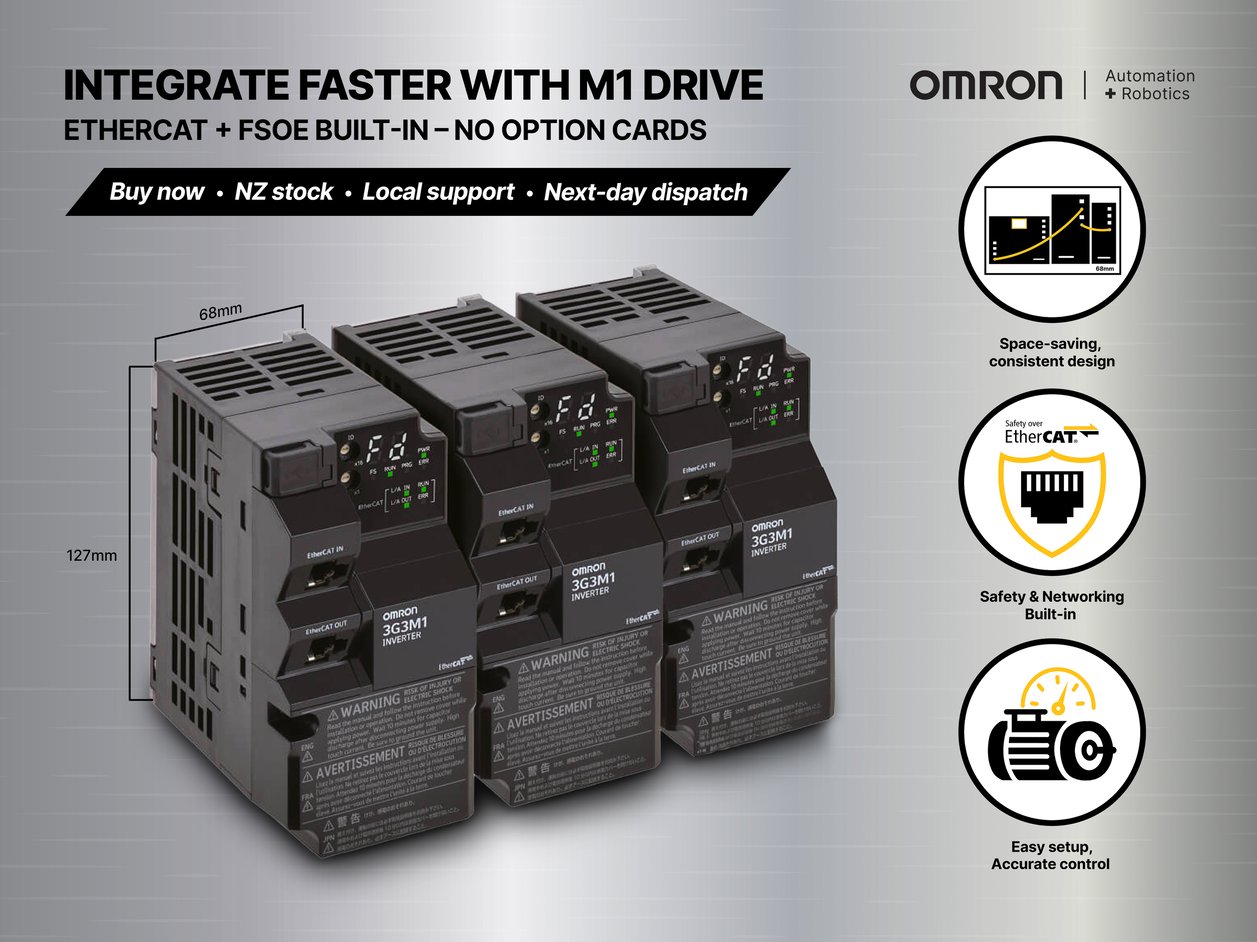

Final NZ M1 Drive

The OMRON 3G3M1 Series is a compact, general-purpose AC drive with precise motor control, native connectivity, and built-in safety to accelerate machine design.
Standard models: Fast setup via USB and Modbus RTU.
EtherCAT models: Built-in EtherCAT + FSoE for SIL 3/PL e STO, future-proof inside the Sysmac ecosystem.
Range: 0.1–22 kW at 230 V / 400 V in slim footprints from 68 mm wide to save panel space
Ease, speed, accuracy, reliability, safety — future-ready by design.

Challenges the M1 Solves
⏱ No wasted integration time — EtherCAT + FSoE are built in. No add-on cards required.
📦 Cabinet space is tight — M1 starts at 68 mm × 127 mm, reducing panel size and wiring.
🔄 Flexibility for mixed motors — supports induction and PM motors, V/f and vector control

M1 Variable Speed Drive vs Competitors

Feature	OMRON M1 VSD (3G3M1)	Typical Competitor Drives
EtherCAT + Safety (FSoE)	✅ Native EtherCAT + FSoE; STO to SIL 3/PL e; no add-on cards; ring topology support in the Sysmac architecture.	❌ EtherCAT and safety often require separate option cards → higher cost, extra setup, more parts to manage; ring topology support varies.
Hardware Size & Scalability	✅ Slim frames from 68 mm W × 127 mm H; same footprint 0.1–22 kW across 200 V / 400 V → simpler panel layouts and fewer spare variants.	❌ Bulkier / varying footprints across power ratings → panel redesigns, extra wiring, more spare variants.
Precision Control & Software	✅ USB commissioning in Sysmac Studio; V/f & vector (open/closed loop) for IM & PM; up to 590 Hz; built-in trace & diagnostics + encoder/pulse input for fast tuning	❌ Basic V/f common; multiple tools / manual tuning more likely; diagnostics and feedback inputs vary by model.

Disclaimer: Comparisons are indicative; verify per model and application.

Specifications

Category	Details
Models	Standard (M1 STD): 3G3M1 Axxxx / ABxxx; EtherCAT (M1 ECT) 3G3M1 Axxxx ECT / ABxxx ECT
Power & Mains	1P 230 V: 0.2–3.7 kW (ECT starts at 0.2 kW); 3P 230 V Up to 22 kW (duty-dependent); 3P 400 V: 0.4–22 kW
Control Modes	V/f (open loop), Vector (open loop); Max output frequency 590 Hz
Motor Types	Induction (IM), Permanent Magnet (PM)
Safety	M1 STD: STO (wired) M1 ECT: STO via FSoE (plus wired) Capability SIL3 / PLe
Networks & I/O	M1 STD: RS-485 Modbus RTU + USB M1 ECT: EtherCAT Slave + USB
Encoder & Pulse Input	Built-in encoder/pulse counter input for feedback and speed functions
Control Power / Backup	24 VDC control power backup maintains comms/control during mains dips
Commissioning & Tools	USB workflow in Sysmac Studio Program download without mains power Built-in trace for diagnostics
Advanced Functions	Predictive-maintenance parameters; energy-saving modes Speed / Position / Gear functions (configuration-based)
Enclosure & Size	IP20; slim frames from 68 mm W × 127 mm H × 120–165 mm D (0.4–0.75 kW frames); larger frames scale appropriately

Compliance: RCM (Australia & New Zealand), CE (Europe), UKCA (UK), cULus (US & Canada), KC (Korea), and RoHS (Hazardous Substances Restriction).

Future-Proof: Designed for 10 years of 24/7 maintenance-free operation.

How to Select Your M1 Drive
• M1 ECT (EtherCAT): Choose for native EtherCAT, integrated FSoE STO, and Sysmac synchronisation.
• M1 STD (Standard): Choose for cost-optimised control via RS-485 Modbus RTU + USB, with STO (wired); capability SIL3 / PLe.

Voltage / Power Range
• 1P 230 V: 0.2–3.7 kW (ECT starts at 0.2 kW)
• 3P 230 V: Up to 22 kW (duty-dependent: ND/HD/HHD)
• 3P 400 V: 0.4–22 kW

Duty guide: ND for pumps/fans | HD/HHD for conveyors, indexing, and higher-inertia loads.

Quick Select – EtherCAT Models in Stock

Note on communications port: All 3G3M1-ECT models include EtherCAT Slave and USB as standard (no option cards required).

Model	Drive supply voltage	Max. motor output (constant torque)	Max. motor output (variable torque)	Price (ex GST, NZ$)	Buy now
3G3M1-AB002-ECT	230 V single phase	0.2 kW	0.4 kW	$758.81
3G3M1-AB004-ECT		0.4 kW	0.55 kW	$959.75
3G3M1-AB007-ECT		0.7 kW	1.1 kW	$1,042.45
3G3M1-AB015-ECT		1.5 kW	2.2 kW	$1,311.06
3G3M1-AB022-ECT		2.2 kW	2.7 kW	$1,704.30
3G3M1-AB037-ECT		3.7 kW	3.7 kW	$2,215.59
3G3M1-A4004-ECT	400 V three phase	0.4 kW	0.75 kW	$1,218.74
3G3M1-A4007-ECT		0.7 kW	1.1 kW	$1,409.76
3G3M1-A4015-ECT		1.5 kW	2.2 kW	$1,609.84
3G3M1-A4022-ECT		2.2 kW	3 kW	$1,793.04
3G3M1-A4030-ECT		3 kW	4 kW	$1,916.49
3G3M1-A4040-ECT		4 kW	5.5 kW	$2,176.34
3G3M1-A4055-ECT		5.5 kW	7.5 kW	$2,681.78
3G3M1-A4075-ECT		7.5 kW	11 kW	$3295.04
3G3M1-A4110-ECT		11 kW	15 kW	$3,678.33
3G3M1-A4150-ECT		15 kW	18.5 kW	$4,828.21
3G3M1-A4185-ECT		18.5 kW	22 kW	$6,276.40
3G3M1-A4220-ECT		22 kW	30 kW	$8,158.80
