If your sensor can’t handle it… maybe it’s time for ours.

Cillian and Isabel Engineers Laser Sensor

 Buy Now – In Stock for Same Day Despatch

Skip the wait and order directly from our store.

 Book Your Free 1-to-1 Onsite Demo

Prefer a walkthrough at your site?

 0800 4 OMRON (0800 466 766)

 sales-nz@omron.com

Buy Now – In Stock for Next Business Day Delivery

Skip the wait and order directly from our eStore.

     Features
  • Wide Sensing Range (0.05–6m)
    Detect objects from long distances, including dark or glossy surfaces.
  • Exceptional Angle Characteristics (up to ±85°)
    Reliable detection even when sensors are installed at wide angles or in tight spaces.
  • Antifouling Coating + Rugged Design
    Repels dust, fog, and oil. Withstands IP69K, IP67G, ECOLAB, and -30°C conditions.
  • Built-In OLED Display
    Easy-to-read status, settings, and diagnostics in 5 languages.
  • Automatic Mutual Interference Prevention
    Prevents sensor crosstalk even in tightly packed installations.
  • IO-Link Support
    Enables predictive maintenance, remote monitoring, and faster commissioning.

Wide Detection Range,
Superior Angle Characteristics

E3AS-HF_LaserSensor_OMRON_ Actual Size

TOF laser sensor with built-in amplifier E3AS-HF

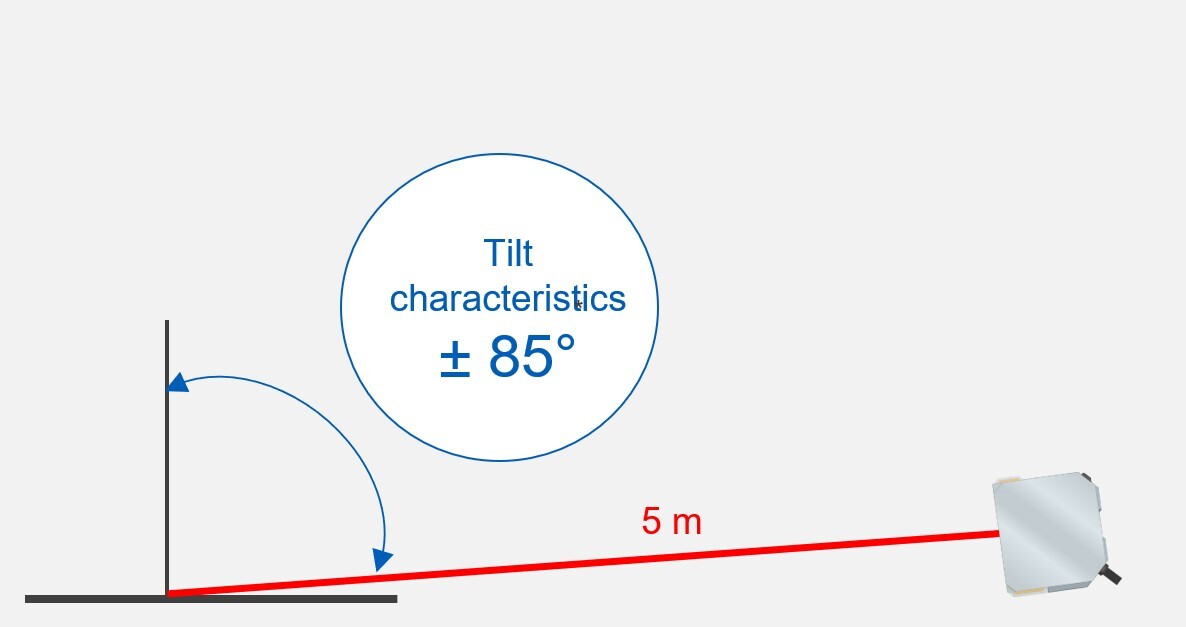

E3AS-HF_LaserSensor_OMRON_ 85_Degree

Note: When measured with a detection distance of 5 m, a black paper reflectivity of 10%, and a response time of 200 ms

Maximum angle characteristics of ±85° and a maximum detection distance of 6 m provide greater device design freedom

The E3AS-HF has excellent angle characteristics, so it can be installed outside routes where people and robots operate. In addition, due to its wide detection range, you do not have to select sensors based on distance. It also helps reduce the man-hours required for selecting devices and the number of devices required for inventory management



E3AS-HF_LaserSensor_OMRON_ Angle Detection

Only the E3AS-HF has automatic mutual interference prevention function

E3AS-HF Mutual Inteference

The E3AS-HF projects approximately 65,000 different light patterns per sensor.

This means that even if sensors are installed facing each other on the countless shuttles traversing automated warehouses, they will not interfere with one another, preventing equipment stoppages.



ESAS-HF_Automatic_interference_prevention

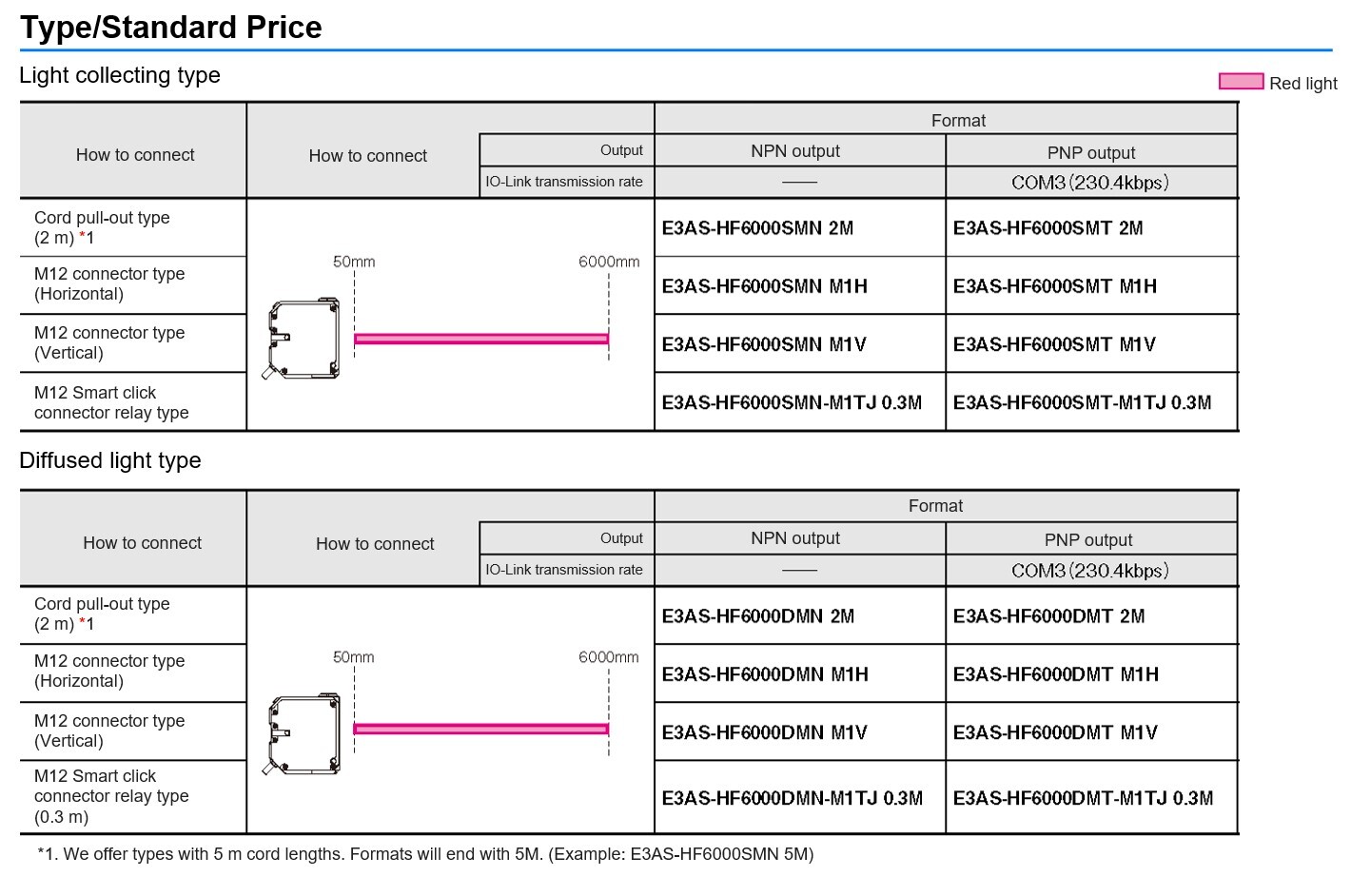

E3AS-HF TypeStandardPrice



 Buy Now – In Stock for Same Day Despatch

Skip the wait and order directly from our store.

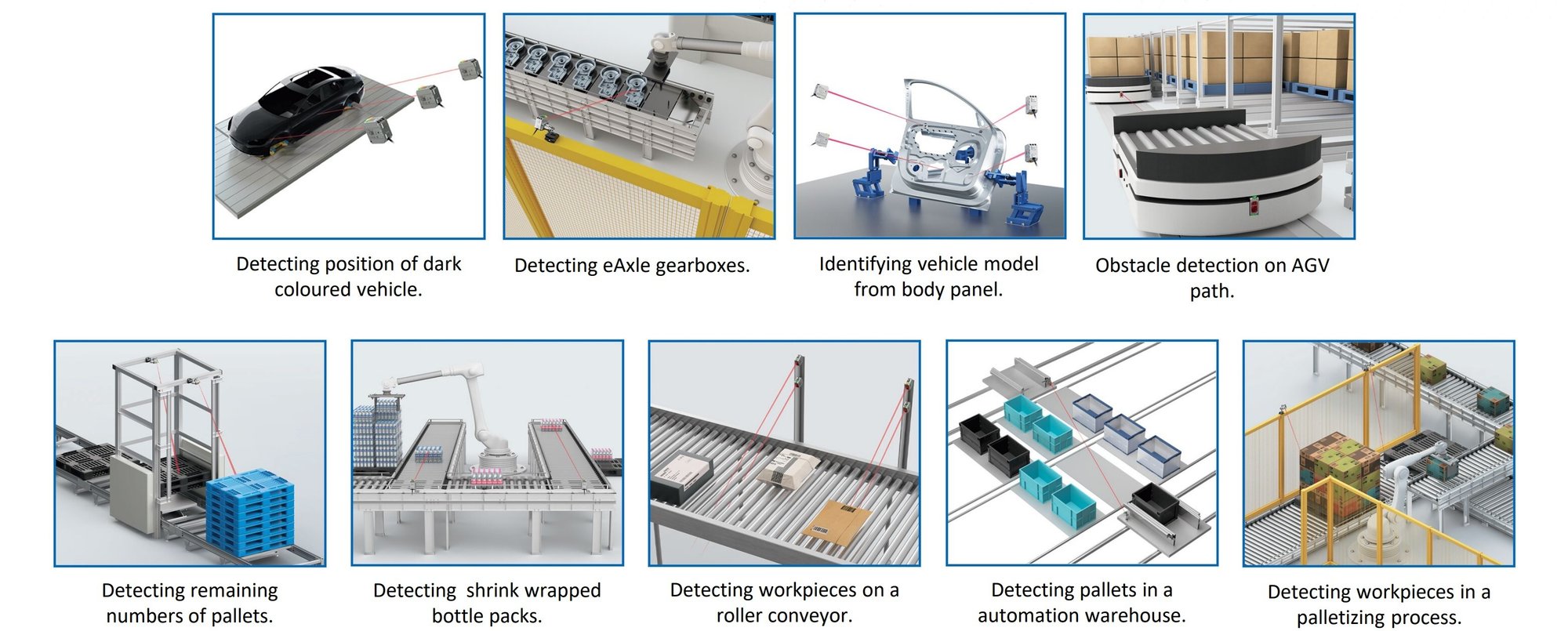

Versatile Detection for Diverse Environments
The E3AS-HF excels in a wide range of applications—from detecting challenging materials to ensuring stable sensing in harsh or variable environments. See where it makes a difference.

ESAS-HF_Versatile
